What are the Benefits of Fill Media in a Cooling Tower?
In many industrial sectors and large buildings, a key part of temperature control is the Cooling Tower system. Within it, one component plays a crucial role: the heat exchange fill media, which serves as the primary medium for transferring heat out of the system, maximizing the cooling process's efficiency.
Understanding the function and benefits of fill media is essential, as it directly impacts performance, energy consumption, and the overall lifespan of the cooling system. This article will take you through an in-depth look at cooling tower fill media, from its operating principles to its maintenance, ensuring your system runs smoothly and sustainably.
What is Heat Exchange Fill Media?
Heat Exchange Fill Media is a component inside a cooling tower specially designed to increase the surface area of contact between the hot water that needs cooling and the cool air flowing through. This allows for rapid and highly efficient heat transfer. This media is typically made from durable materials resistant to moisture and high temperatures, such as PVC or Polypropylene.
Having quality fill media that is appropriate for the type of cooling tower ensures efficient heat exchange, helping to quickly reduce the temperature of the circulating water. This is the heart of cooling in industrial plants and large-scale air conditioning systems.
The Role of Fill Media
The main role of fill media is to enhance the efficiency of heat transfer from the process water to the air. The specific design of the fill, such as honeycomb or corrugated patterns, helps spread the water into a thin film or small droplets while air is drawn through it. This increase in surface area is what allows for a massive amount of evaporation and conduction, transferring heat from the water to the air.
Basic Operation of the Fill

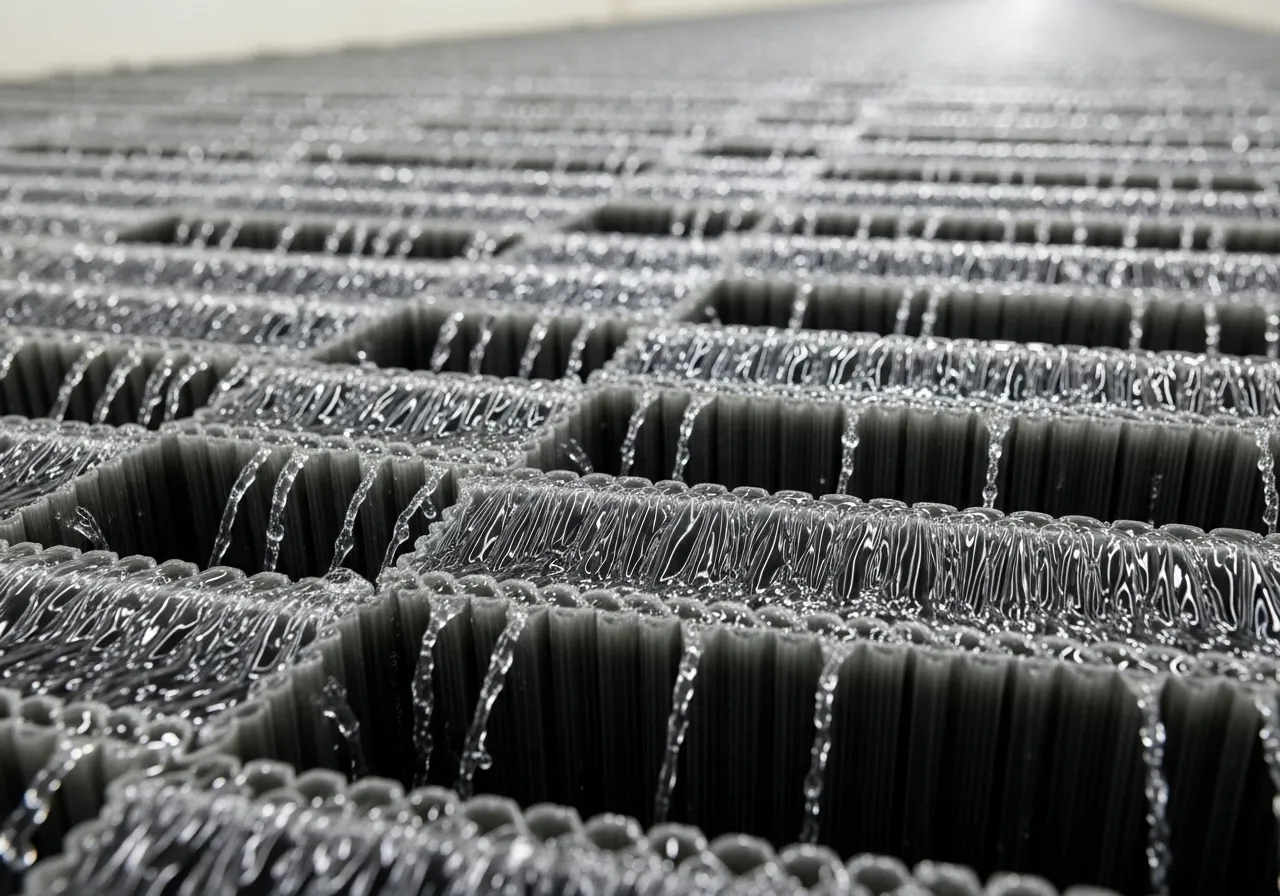

The basic operation of fill media begins when hot water from various processes is pumped to the top of the cooling tower and sprayed down over the fill. Simultaneously, large fans draw outside air into the tower and force it through the fill. The water spreads out in a thin layer on the fill's surface, creating thorough contact with the cool air, often flowing in the opposite direction. Heat is transferred from the water to the air through partial evaporation and direct conduction, causing the water that reaches the bottom of the tower to be cooler, ready to be recirculated.
Types of Fill Media in Cooling Towers
There are various types of fill media used in cooling towers, but they can generally be divided into two main categories. Each type has different properties and operating characteristics to suit different applications and environments. Selecting the correct type of fill will help the cooling system operate at peak efficiency and have a long service life.
Film Fill

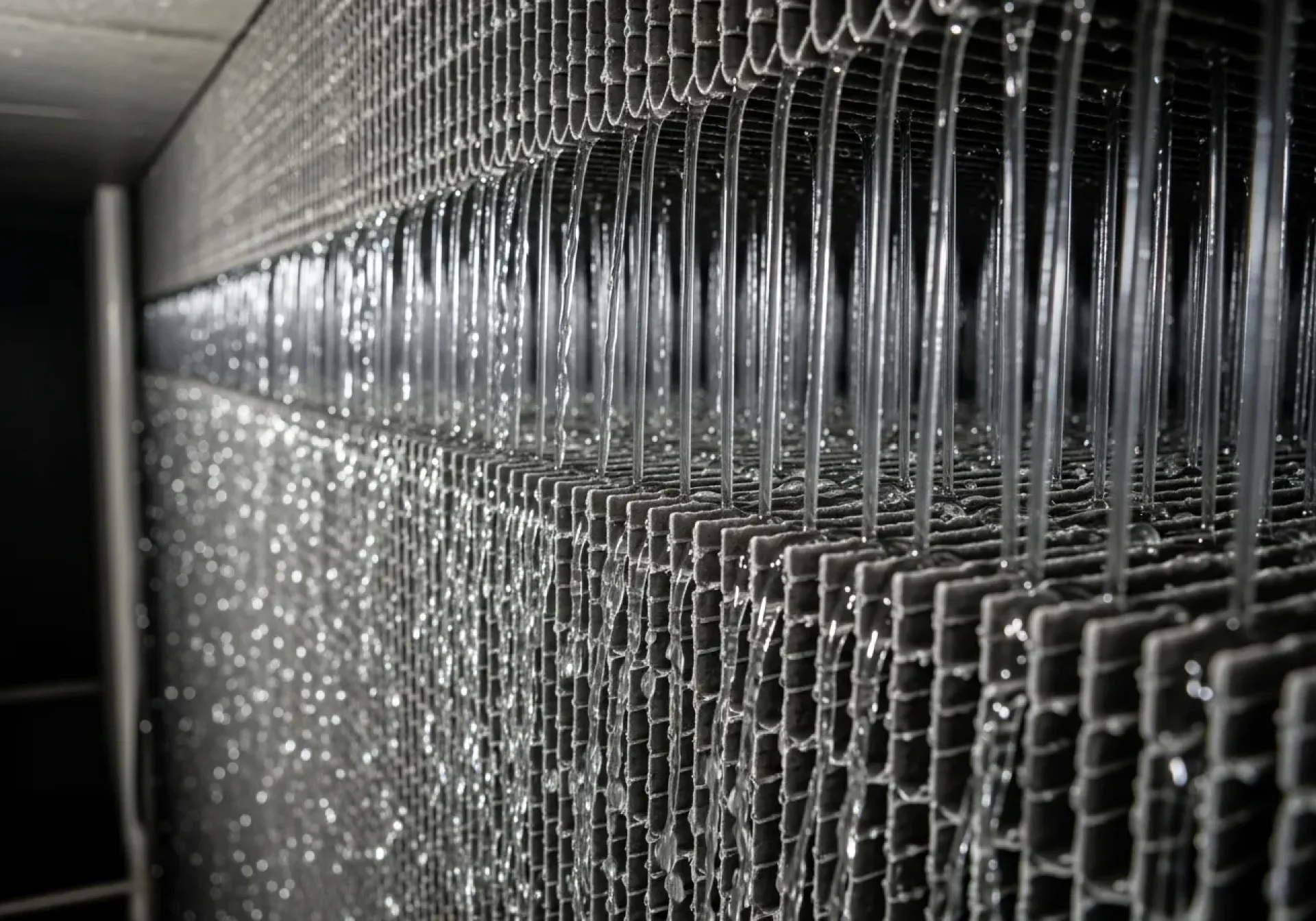

Film fill consists of thin, closely packed sheets or a honeycomb structure designed to spread the water out into a very thin film that covers the surface. As hot water flows over it, the fill vastly increases the water's surface area, leading to excellent heat transfer through evaporation. This type of fill is best suited for high-quality water with few suspended solids, as the small passages can be easily clogged if the water is dirty.
Splash Fill
Splash fill, or splash-type media, consists of bars or a grid structure that causes the water to break into small droplets and splash down through the tower. The operation of this fill type focuses on creating a large volume of droplets to increase the surface area contact between water and air. Splash fill is much more resistant to clogging than film fill, making it suitable for water with high levels of impurities or sediment, such as water from some industrial processes. While its cooling efficiency might be less than film fill in terms of continuous surface area, it is a robust choice for challenging environments.
Benefits of Fill Media
Having suitable, high-quality fill media brings numerous benefits to the cooling tower system and the organization's overall operation. These range from increased operational efficiency and energy savings to helping protect the environment. These benefits are key reasons why fill media is an indispensable component in modern cooling systems.
Increased Cooling Efficiency
Fill media is designed to maximize the surface area between water and air, which in turn allows the water to release heat to the air much more quickly. This increased surface area allows the evaporation process, the primary mechanism of cooling, to work at full capacity, resulting in cooler water at the desired temperature. Well-designed fill can significantly reduce water temperature, helping machinery or processes that rely on cooling water to operate stably and reducing the risk of damage from overheating.
Energy Savings
When fill media increases cooling efficiency, it means the cooling tower doesn't have to work as hard to achieve the desired result. Reducing the workload on the cooling tower's fans and pumps directly leads to a reduction in electricity consumption, a significant operational cost. Saving energy not only cuts costs but also helps reduce greenhouse gas emissions, making the business more environmentally responsible.
Maintenance of Fill Media
To ensure fill media operates efficiently and has a long lifespan, regular maintenance is crucial. Neglecting maintenance can lead to various problems, such as reduced cooling efficiency, wasted energy, and equipment damage. Regular cleaning and inspection are therefore key to keeping a cooling tower system healthy.
Cleaning Methods
Regular cleaning of fill media helps remove sediment, algae, or other debris that can accumulate and clog the fill's passages. Generally, cleaning can be done in several ways, such as using high-pressure water to wash away dirt. In cases of heavy scale buildup, appropriate cleaning chemicals may be necessary. The cleaning method should be chosen based on the fill material and the type of fouling to prevent damage to the media.
Inspection and Maintenance
In addition to cleaning, preventive inspection and maintenance are equally important. Fill media should be regularly inspected for signs of wear, damage, or clogging. If problems are found, they should be addressed immediately, which may include repair or replacement. Inspections should also cover the water distribution system and fans to ensure water is spread evenly and air is circulating well. Proper maintenance will extend the life of the fill and maintain its cooling efficiency.
Precautions for Using Fill Media
Although fill media is extremely beneficial, there are some precautions in its use and maintenance to avoid problems that could affect performance and increase costs. Understanding these precautions will help users manage their cooling tower systems wisely and sustainably.
Common Problems
Common problems with fill media include clogging from sediment, algae, or debris, which reduces the surface area and obstructs airflow and water flow, leading to decreased cooling efficiency. Additionally, the buildup of bacteria and pathogens, such as Legionella bacteria, is another public health risk that must be managed. Wear or damage to the fill from the environment or incompatible chemicals is also a potential issue.
How to Prevent Problems
To prevent these problems, the water used in the cooling tower should be properly treated to reduce scaling and control the growth of algae and bacteria. Installing a water filtration system can help reduce debris before it enters the system. Choosing fill media made from durable materials suitable for the water quality is another key factor. Furthermore, regular inspection and cleaning schedules will help detect and fix problems early before they escalate.
The Future of Fill Media Technology
Fill media technology is continuously evolving to meet the demands for higher cooling efficiency, lower energy consumption, and environmental sustainability. Research and development are focused on creating new materials and intelligent fill structure designs to achieve the best results.
Development Trends
Trends in fill media development are focused on materials that are more resistant to chemicals and high temperatures, as well as materials with antimicrobial properties. Designing fill with more complex geometries to further increase surface area while reducing air resistance is another interesting direction. The integration of Smart Sensors into the fill to detect clogging or damage in real-time will also help make maintenance more efficient.
New Technologies
New technologies are emerging, such as fill media made from recycled plastics or bio-based materials to reduce environmental impact. There is also development in fills with special coatings to reduce the adhesion of scale and algae, which helps lower the cleaning frequency and extend service life. The use of Computational Fluid Dynamics (CFD) in designing fill also allows engineers to create media with maximum efficiency under various conditions more accurately.
Comparison with Other Cooling Systems
Understanding the pros and cons of cooling towers with fill media compared to other types of cooling systems helps in making informed decisions about the most suitable system for an organization's needs and constraints, whether considering efficiency, operating costs, or environmental impact.
Pros and Cons of Each System
Cooling towers with fill media as a primary component have the advantage of being able to dissipate large amounts of heat at a relatively low cost compared to their cooling capacity, making them ideal for industrial applications and large buildings. However, the disadvantage is that they can require large amounts of water and experience water loss through evaporation. There is also a risk of sediment and microbial buildup if not well-maintained.
In contrast, other systems like Air-Cooled Chillers use air to cool directly, eliminating issues of water loss and water treatment. However, their cooling efficiency may be lower in certain conditions, and they have higher energy costs. There are also Evaporative Condensers, which combine the advantages of both systems but may be more complex to install and maintain.
Selecting a Cooling System
The selection of an appropriate cooling system should be based on several factors, including the amount of heat to be dissipated, available water quality, installation and operational costs, space limitations, local climate, and environmental regulations. For industries requiring large-scale heat rejection and having access to a suitable water source, a cooling tower with efficient fill media remains a cost-effective and popular choice. Consulting with a cooling system expert can help in selecting the best solution.
Frequently Asked Questions (FAQ)
Why is fill media important in a cooling tower?
Fill media is a crucial component that increases the surface area between water and air, maximizing the heat transfer process. This leads to a rapid reduction in water temperature and helps save energy for the entire system.
How do I choose fill media?
When choosing fill media, you should consider factors such as the type of cooling tower, the quality of the water being used, the amount of heat to be dissipated, and your budget. You should consult an expert to select the type and material of fill that is most suitable for your application.
What are the precautions for using fill media?
The main precaution is to prevent clogging from sediment, algae, or debris, which reduces efficiency. Proper water treatment, along with regular inspection and cleaning of the fill, is necessary to prevent these problems and extend the fill's life.
How will fill media develop in the future?
In the future, fill media is expected to be developed for higher efficiency, using more durable and environmentally friendly materials. This includes the integration of Smart Sensors for detection and maintenance to meet energy and sustainability demands.
Conclusion
Fill media is an extremely important element in a cooling tower system, enabling efficient temperature control and energy savings. Understanding its operation, types, benefits, and proper maintenance will help your system operate at its full potential, reduce operating costs, and extend the life of the equipment. Investing in maintenance and quality fill is, therefore, a worthwhile long-term investment for any industry.
