Professional Cooling Tower Cleaning Steps, Frequency, Safety, and Legionella Control

A "truly clean" cooling tower offers a double benefitsharp cooling efficiency is restored, and health/safety risks plummet. Scale, sludge/silt, and biofilm are the three culprits that rapidly decrease the heat exchange coefficient. Fill media and basins with even a few millimeters of deposits force compressors or chillers to work harder, consume more energy, and accelerate the wear and tear on pumps and motors.

The health aspect is equally critical. Aerosols (drift) from a poorly maintained tower can carry pathogens, such as Legionella. Having a proper cleaning and disinfection plan is therefore not just a "cleaning task" but a corporate risk control measure.

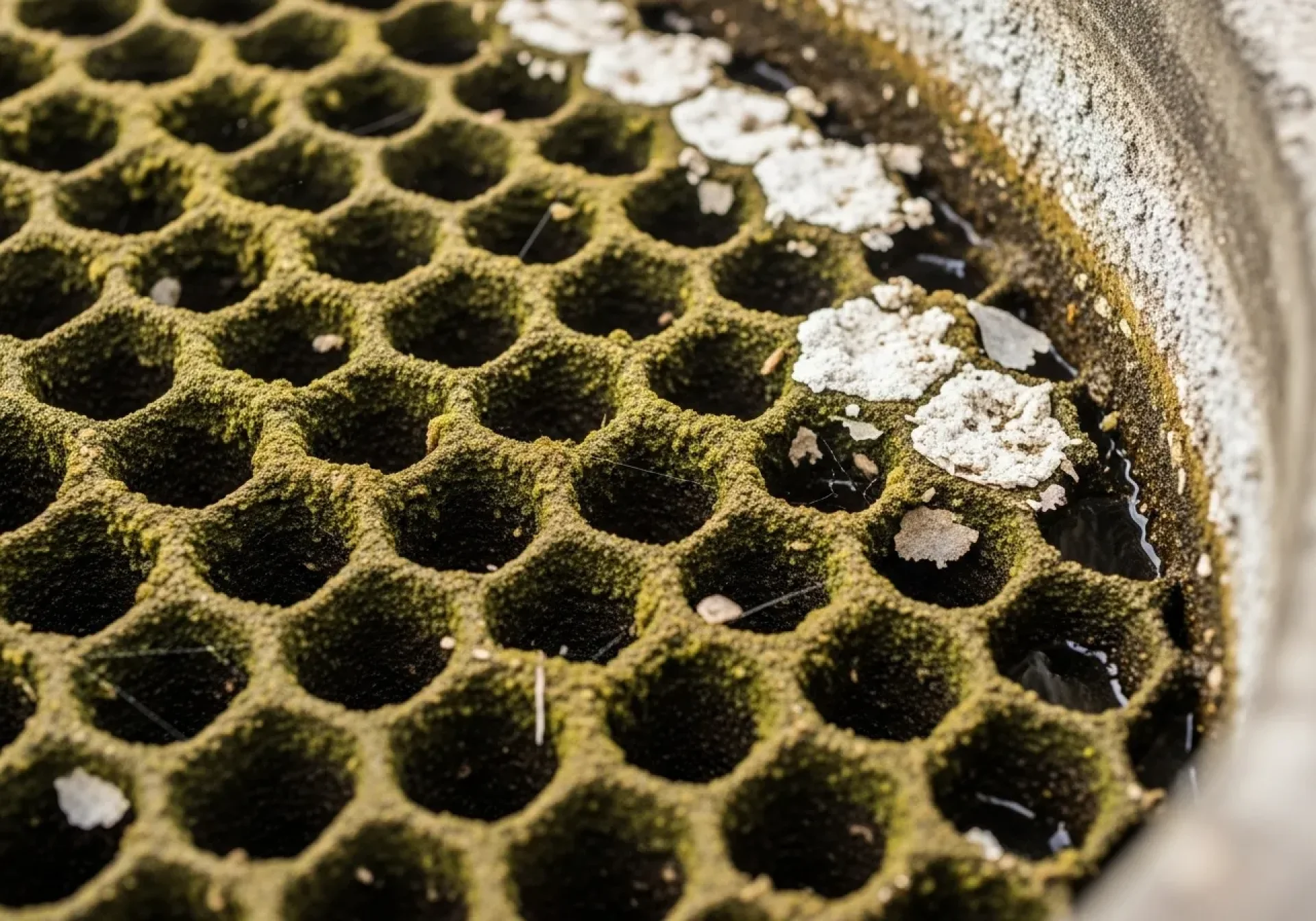

What's often overlooked is the "gradual accumulation" of fine sediment from the air and make-up water. When mixed with biofilm, it forms a sticky layer that is difficult to wash off and acts as an excellent thermal insulator. It also harbors microorganisms and accelerates metal corrosion. If left unchecked, the system slowly loses efficiency until, one day, energy costs spike unexpectedly.

Step-by-Step Cleaning Process

Start with Planning and Safety: Announce the system shutdown, post warning signs, perform LOTO (Lock-Out/Tag-Out) on both electrical and valves, barricade the work area, and review the SDS (Safety Data Sheets) of all chemicals to be used. Confirm emergency shower/eyewash stations are operational. Then, proceed in order:

• Drain Close the make-up valve, open the bleed/drain valve to lower the water level until the basin floor is accessible.
• Deslug Use a sludge vacuum or scoop to remove heavy sediment from the basin, dead corners, and sumps to prevent it from re-clogging nozzles.
• Clean Accessible Areas Scrub the basin floor, remove algae/biofilm. Inspect corners, areas behind louvers, and overflow weirs.
• Clean Fill / Drift Eliminators Follow the manufacturer's guide for the specific model and material (some materials are sensitive to excessive pressure). Wash in the reverse direction of normal flow to flush contaminants out.
• Descale Use a chemical descaler compatible with the materials (e.g., PVC, PP, PVDF, FRP, Stainless Steel). Control pH and soak time according to specifications. Neutralize and flush thoroughly after soaking to prevent residual corrosion.
• Disinfect Perform a shock dose with a biocide (oxidizing or non-oxidizing). Ensure the correct contact time and pH range are met before flushing the system again.
• Refill & Re-balance Refill with fresh water. Set the Cycles of Concentration (CoC) based on the target conductivity. Inspect nozzles and water distribution. Finish by testing key parameters and logging the results.

Equipment and Safety

• Full PPE: Chemical goggles/face shield, gloves, chemical-resistant boots + protective suit as required by the SDS.
• Cleaning Chemicals: Descaler compatible with fill/basin materials and a biocide selected for the water treatment program.
• Tools: Pressure washer (with pressure control to avoid damaging fill), sludge vacuum, brushes/scrapers, lighting for confined spaces.
• Measurement Tools: Test kits for pH/Conductivity/Total Dissolved Solids (TDS), ORP meter (if using oxidizing biocide), microbial dip slides.
• Waste Management: Containment bunds/sumps for cleaning water, a neutralization plan, and disposal procedures for sludge and wastewater according to regulations.

Frequency and Water Quality Indicators

The frequency of cleaning depends on make-up water quality, heat load, climate, and airborne debris at the site. Generally, a "major clean" should be performed at least once a year, with minor maintenance (e.g., quarterly or monthly, based on use) in between. Between major cleans, rely on the water treatment controller for preventive action.

Key indicators used to control water quality and signal "it's time" are:

• Conductivity & CoC (Cycles of Concentration): Set a target based on minerals in the make-up water and system materials to control bleed-off, preventing over-concentration and scale.
• pH / Alkalinity / Hardness / Silica: These determine the risk of scaling and guide the choice of scale inhibitors.
• Scale/Corrosion Indices (e.g., LSI/RSI): Used as a signal to adjust chemical dosage or CoC.
• Microbes: Test with dip slides or ORP/ATP tests to monitor biological trends.
• Suspended Solids: If high, consider side-stream filtration (510% of the circulation rate) to trap sediment before it forms biofilm.

An effective practice is to start with "safe" target values and gradually optimize them based on actual data and seasonal changes to reduce system fluctuations and excess chemical use.

Preventive Maintenance: Reduce Energy, Extend Equipment Life

Occasional cleaning is insufficient without "post-cleaning discipline"; the system will quickly revert to its dirty state. The key is to keep Before & After Records: photos of key areas (basin/fill/nozzles), pH/Conductivity/ORP/CoC values, bleed-off rate, and actual load (inlet/outlet water temperatures). Then, monitor trends to spot areas that "get dirty abnormally fast" and address the root cause (e.g., increase side-stream rate, adjust nozzle cleaning schedule, or change the biocide program).

Don't forget the rotating equipmentas deposits in the water system decrease, fans and pumps work easier. Check if pressure and flow rates have returned to near-design specifications. Measure vibration at motor bearings/fan gearboxes to detect early warning signs. Check belt tension/coupling alignment and set lubrication schedules based on actual operating hours.

For sustainable results, add "small but important tasks" after the major clean: periodic nozzle/water distributor cleaning, ensuring drift eliminators are seated properly (to reduce drift), checking seals and joints in the tower structure, and painting metal parts exposed to corrosive chemical drift. All this helps extend the life of the fill and structure and brings the entire system's energy costs back into a cost-effective zone.

Field Tips for a Longer-Lasting Clean

• Set bleed-off based on actual conductivity and adjust when make-up water quality changes.
• Use an alternating biocide program to reduce microbial resistance and maintain continuous biofilm control.
• Install a side-stream filter (510% of circulation) to trap sediment and reduce sludge on the fill.
• Schedule a "nozzle cleaning day" monthly and visually check water distribution over the fill.
• Maintain a standard log sheet for all chemical/mechanical values and photos of high-risk areas every time.

Conclusion

Cooling Tower cleanliness is not about aesthetics; it reflects the Energy Efficiency, Reliability, and Safety of the system. Following the stepsDrain, Deslug, Clean, Descale, Disinfect, Re-balancewhile adhering to Safety First principles, selecting appropriate chemicals/methods for the materials, and following up with preventive maintenance and consistent monitoring, will help the tower cool faster, use less energy, and significantly extend equipment life in the long run.
