DRIFTE ELIMINATOR

Innoveks drift eliminators are designed to minimize water loss and reduce energy consumption in cooling towers, while meeting global industry standards (CTI, ASHRAE, and ISO). Our advanced 3-stage designs deliver :

  • Ultra-low drift loss (as low as 0.001%)
  • Minimal pressure drop (optimized for energy savings)
  • High durability (UV-resistant PVC & corrosion-proof PP)
  • Proven field performance (installed in 10M+ sq.ft worldwide)

Why Choose Innovek Drift Eliminators?

  • Engineered for Efficiency Optimized airflow with minimal pressure drop
  • Industry-Leading Drift Control As low as 0.001% water loss
  • Global Compliance Meets CTI-140, ASHRAE, and ISO standards
  • Custom Solutions Tailored designs for unique tower configurations

Product Range

Drift-IDE45

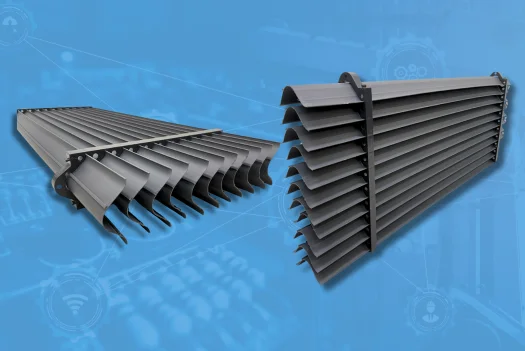

IDE35 Blade-Type Drift Eliminator (Crossflow Systems)

Best for:

  • Crossflow cooling towers
  • High-velocity air applications
  • Compact tower designs

Key Features:

  • 35mm blade spacing for optimal droplet capture
  • Reinforced PVC blades with PP spacers
  • 0.002% drift loss efficiency
  • Modular design for easy maintenance
  • Add special groove to trap droplet water

Performance Data:

  • Drift Reduction: 99.998%
  • Pressure Drop: < 0.07 in. w.g.
  • Material: UV-stabilized PVC & PP

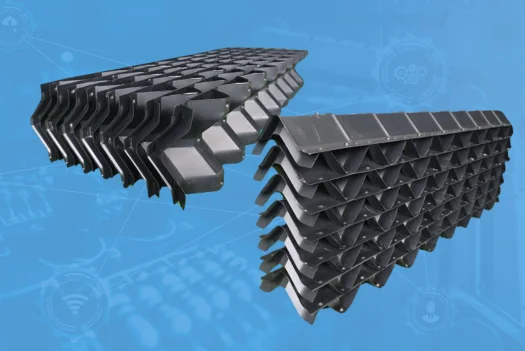

CF-133 Cellular Drift Eliminator (Counterflow Systems)

Best for:

  • Counterflow cooling towers
  • Evaporative condensers
  • Steam turbine intake air systems
  • Industrial scrubbers

Key Features:

  • CTI-140 certified (0.001% drift loss)
  • 3-stage baffle design for superior droplet capture
  • Low-pressure drop reduces fan energy costs
  • Easy retrofit installation for existing towers

Performance Data:

  • Drift Reduction: 99.999%
  • Pressure Drop: < 0.05 in. w.g.
  • Material: High-impact PVC
Drift-IDE45
Drift-IDE45

IDE45 Heavy-Duty Blade-Type Drift Eliminator

Best for:

  • Large-span cooling towers ( 2.0m support spans)
  • High-wind environments
  • Harsh industrial conditions

Key Features:

  • 45mm blade spacing prevents sagging in long spans
  • 0.005% drift loss (ideal for high-load applications)
  • Anti-clogging grooves for consistent performance
  • Corrosion-resistant construction

Performance Data:

  • Drift Reduction: 99.995%
  • Pressure Drop: < 0.06 in. w.g.
  • Material: Industrial-grade PVC & PP
